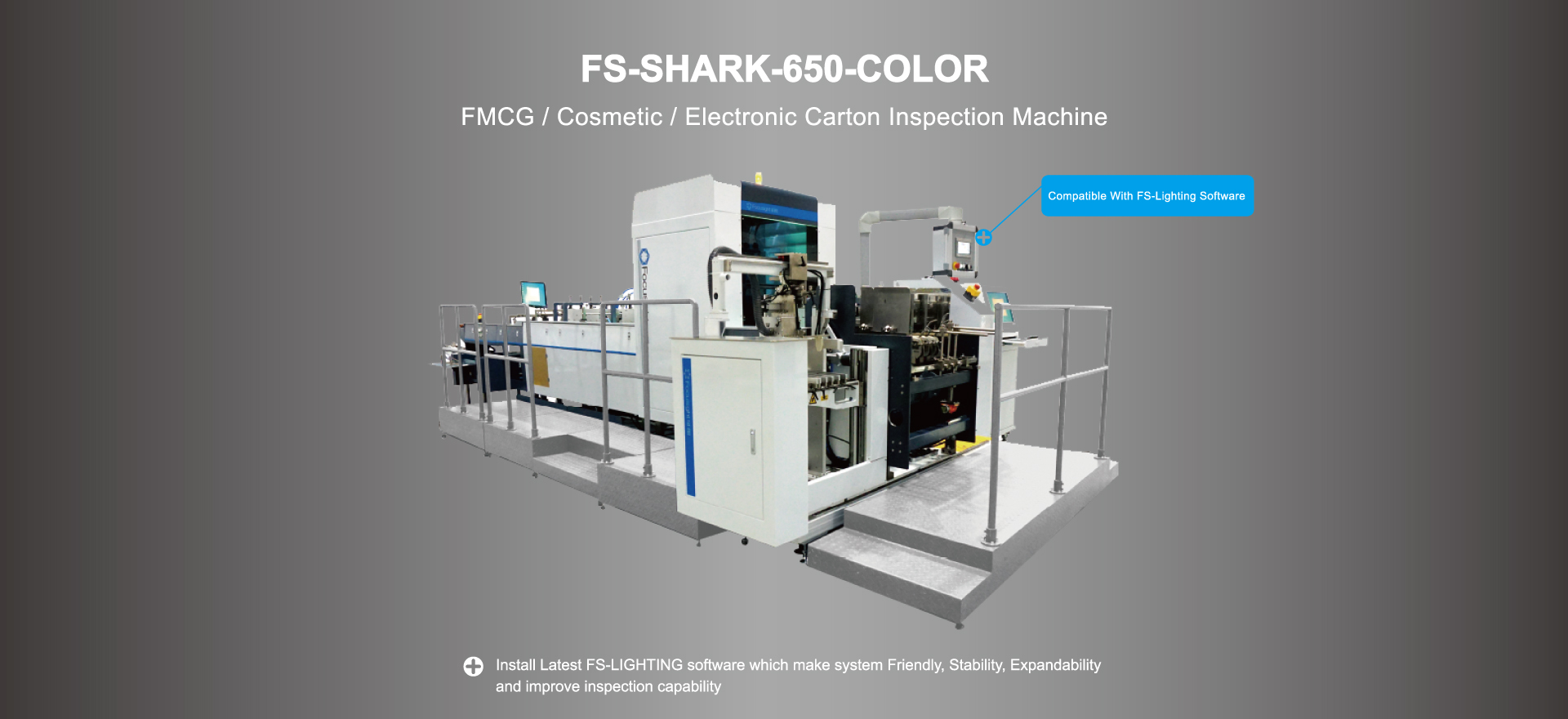

Shark-650M Wide-Format Sheet-Fed Carton Quality Inspection Machine
Model: FS-SHARK-650M
Product Details
Place of OriginChina
Brand NameFOCUSIGHT
CertificationISO9001/CE
Model NumberFS-SHARK-650M
Maximum Inspection Speed200 m/min
Inspection Area120mm × 120mm ～ 650mm × 420mm
Applicable MaterialWhite/gray cardboard, METPET-Silver paper, Gold/laser paper, E-corrugated
Maximum Carton ThicknessUp to 600 gsm
Front Inspection CamerasSupports installation of up to 5 cameras at front
Print Quality DetectionStripe, Ink spot, Color variation, Overprint, Misprinted
Post-Print Quality DetectionVarnishing, Lamination, Cast & Cure, Embossing, Die-cut, Scratch, Foil Stamping, Holographic
Variable Data ModuleQR Code & Verification code data check, Position and appearance defect
High Color Accuracy ModuleMulti-channel German camera; Sort products by different color with multi collection unit
Reverse InspectionWhite/black CCD camera (Dirty, mosquito, appearance defects)
Feeder Unit OptionsFriction feeder (high speed) & Suction feeder (completely avoids scratches)
Multi Collection UnitColor variation separate collection, Big defects separate collection, Variable data defects separate collection
Rejection DevicesDouble reject device: Plate rejecter or Air rejection, supports E-corrugated
Collection ModesAuto Stacker, Fish scale collection, Adjustable belt mode
Mechanical Appearance Size8340mm (L) × 3580mm (W) × 2500mm (H)
Payment & Shipping Terms
Minimum Order Quantity1 Unit
PriceNegotiable
Packaging DetailsPlywood Case
Delivery Time60 Days
Payment TermsL / C , T / T
Supply Ability20 Per Month
Detail Information
| Spec | Value | Spec | Value |
|---|---|---|---|
| Place of Origin | China | Brand Name | FOCUSIGHT |
| Certification | ISO9001/CE | Model Number | FS-SHARK-650M |
| Maximum Inspection Speed | 200 m/min | Inspection Area | 120mm × 120mm ～ 650mm × 420mm |
| Applicable Material | White/gray cardboard, METPET-Silver paper, Gold/laser paper, E-corrugated | Maximum Carton Thickness | Up to 600 gsm |
| Front Inspection Cameras | Supports installation of up to 5 cameras at front | Print Quality Detection | Stripe, Ink spot, Color variation, Overprint, Misprinted |
| Post-Print Quality Detection | Varnishing, Lamination, Cast & Cure, Embossing, Die-cut, Scratch, Foil Stamping, Holographic | Variable Data Module | QR Code & Verification code data check, Position and appearance defect |
| High Color Accuracy Module | Multi-channel German camera; Sort products by different color with multi collection unit | Reverse Inspection | White/black CCD camera (Dirty, mosquito, appearance defects) |
| Feeder Unit Options | Friction feeder (high speed) & Suction feeder (completely avoids scratches) | Multi Collection Unit | Color variation separate collection, Big defects separate collection, Variable data defects separate collection |
| Rejection Devices | Double reject device: Plate rejecter or Air rejection, supports E-corrugated | Collection Modes | Auto Stacker, Fish scale collection, Adjustable belt mode |
| Mechanical Appearance Size | 8340mm (L) × 3580mm (W) × 2500mm (H) | ||
Product Description
Wide-format sheet-fed quality inspection system supporting cartons up to 650mm width and 600gsm thickness. Features mixture feeding (friction or top suction), support for up to 5 front cameras + reverse camera, double reject devices (air/plate) supporting E-flute corrugated, and multi-unit defect collection.
Key Features
- Bigger Width & Thickness: Supports 650mm width with maximum carton thickness up to 600gsm, compatible with E-corrugated, pharmaceutical, and cigarette packaging
- Multiple Suction Feeder: Flexibly adjusts for wide-format cartons
- Mixture Feeder: Strong adaptability — friction feeder for high-speed runs, suction feeder for scratch-sensitive METPET and varnished cartons
- Up to 5 Front Cameras + Reverse Camera: Complete detection of print defects, foil stamping, embossing, spot varnishing, holographic, and reverse cleanliness
- Double Reject Device: Plate rejecter or high-speed air jet rejection based on carton thickness, with full support for E-corrugated boards
- Multi-Channel Defect Separation: Separate waste conveyors for color variations, major mechanical/surface defects, and variable barcode/QR errors
- Versatile Product Collection: Adjustable belt mode, automatic stacker for regular cartons, and fish-scale collection for special/irregular shapes
- Application Industry: Pharmaceutical packets, cigarette packets, luxury folding cartons, and food packaging
