Offset Printing Online Eagle-Eye Inspection System
Model: FS-EAGLE-EYE
Product Details
Place of OriginChina
Brand NameFOCUSIGHT
CertificationISO9001/CE
Model NumberFS-EAGLE-EYE
Maximum Inspection SpeedUp to 15,000 sheets/hour
Compatible Printing PressesHeidelberg, KBA (Koenig & Bauer), Komori, Manroland, and other mainstream offset presses

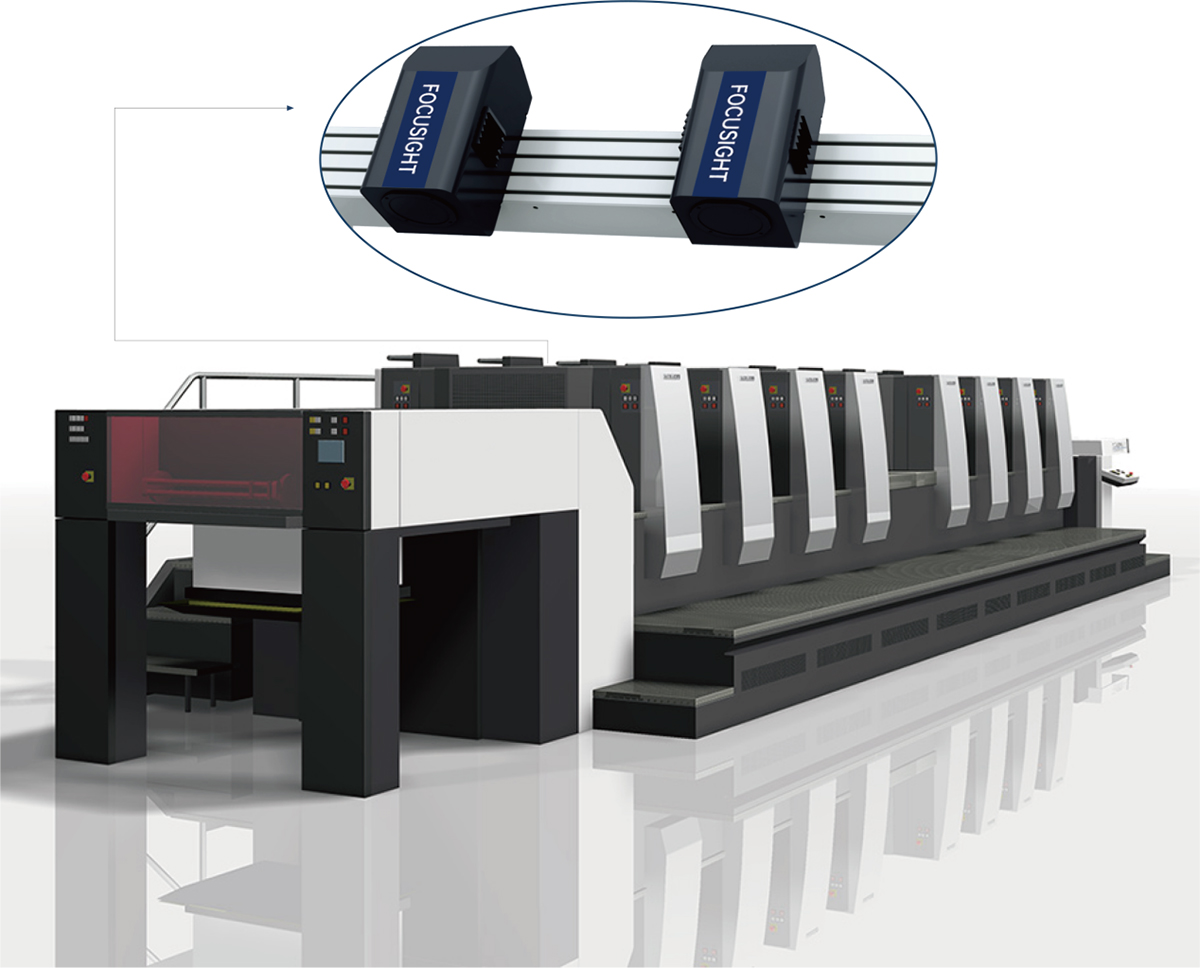

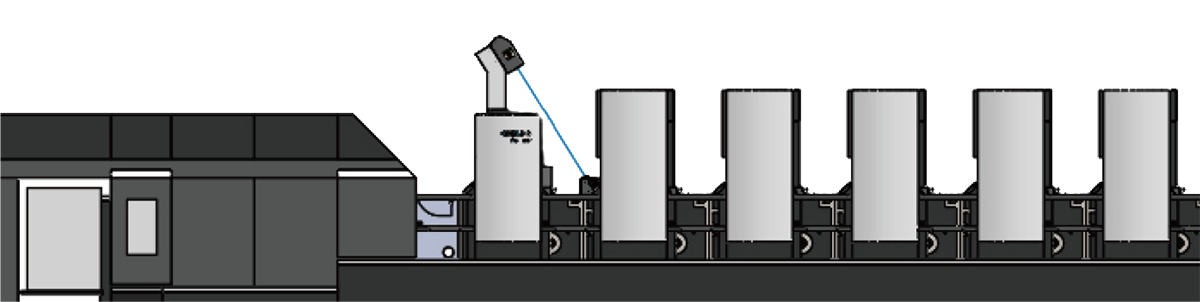

Camera ConfigurationDual 4K / Dual 8K high-speed color line-scan cameras
Lighting SystemHigh-brightness water-cooled LED light source + MateLize laser light column filter
Paper Flattening TechnologyPatented air knife + air surface structure with variable-frequency fan (supports > 350g heavy paper)
Pre-Printing VerificationAutomated 1-click PDF original vs printed sheet consistency check

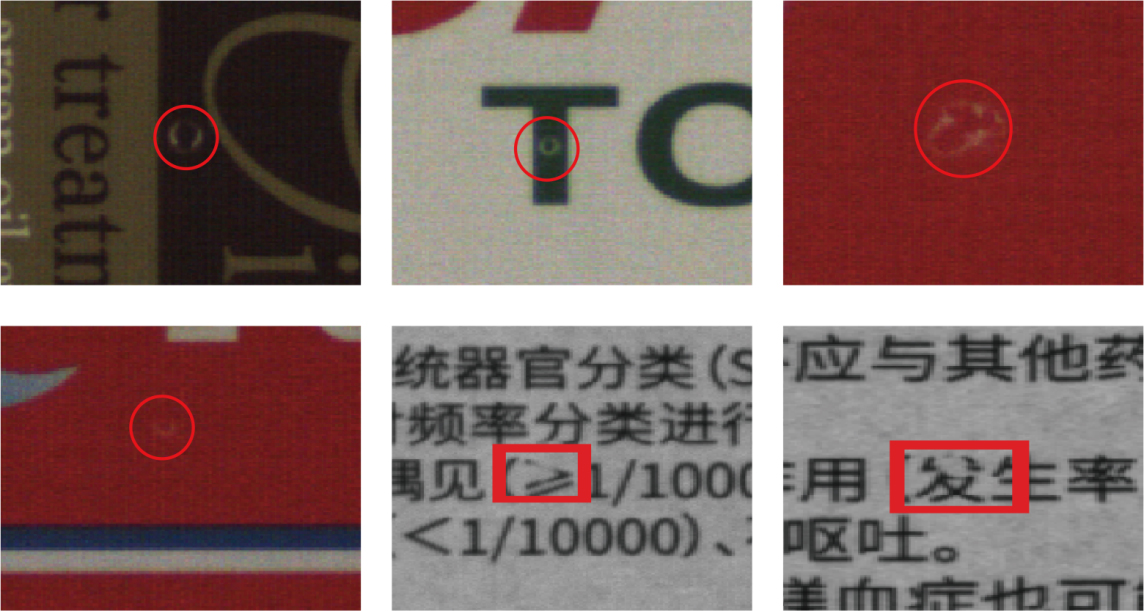

Detectable Defect TypesDirt, ink spots, misregistration, color difference, dry water, oil seepage, drag marks, ink pulling, plate fogging, ink skins, substrate misalignment

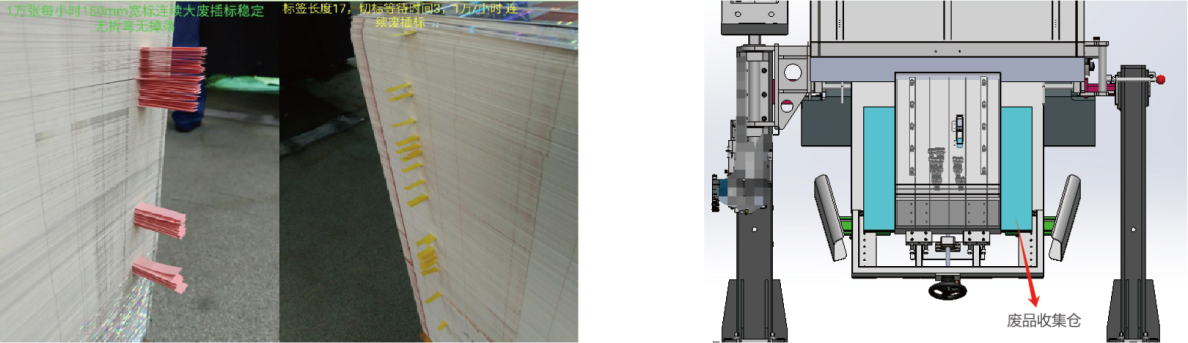

Defect Marking & RejectionOptional high-speed inkjet defect marking & inline reject bin installation
Waste ManagementReal-time continuous waste monitoring with auto-feeder stop and AI false-alarm filtering
Color Measurement PrecisionMulti-region △E color difference measurement consistent with X-Rite spectrophotometers
Software & ReportingPallet piloting report management (red/yellow sheets) with data sharing to offline inspection
MES ConnectivityFull MES system integration and real-time output statistics

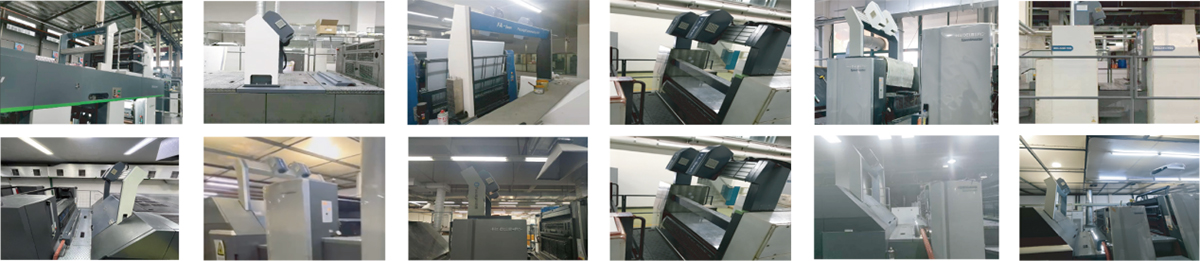

Deployment TimeRapid installation within 48 hours + 1-week process standardization training
Payment & Shipping Terms
Minimum Order Quantity1 Set
PriceNegotiable / Consultation
Installation SupportOn-site installation within 48 hours + 1-week operational training
Packaging DetailsHeavy Duty Wooden Crate
Delivery Time30 - 45 Days
Payment TermsL / C , T / T
Detail Information
| Spec | Value | Spec | Value |
|---|---|---|---|
| Place of Origin | China | Brand Name | FOCUSIGHT |
| Certification | ISO9001/CE | Model Number | FS-EAGLE-EYE |
| Maximum Inspection Speed | Up to 15,000 sheets/hour | Compatible Printing Presses | Heidelberg, KBA (Koenig & Bauer), Komori, Manroland, and other mainstream offset presses |
| Camera Configuration | Dual 4K / Dual 8K high-speed color line-scan cameras | Lighting System | High-brightness water-cooled LED light source + MateLize laser light column filter |
| Paper Flattening Technology | Patented air knife + air surface structure with variable-frequency fan (supports > 350g heavy paper) | Pre-Printing Verification | Automated 1-click PDF original vs printed sheet consistency check |
| Detectable Defect Types | Dirt, ink spots, misregistration, color difference, dry water, oil seepage, drag marks, ink pulling, plate fogging, ink skins, substrate misalignment | Defect Marking & Rejection | Optional high-speed inkjet defect marking & inline reject bin installation |
| Waste Management | Real-time continuous waste monitoring with auto-feeder stop and AI false-alarm filtering | Color Measurement Precision | Multi-region △E color difference measurement consistent with X-Rite spectrophotometers |
| Software & Reporting | Pallet piloting report management (red/yellow sheets) with data sharing to offline inspection | MES Connectivity | Full MES system integration and real-time output statistics |
| Deployment Time | Rapid installation within 48 hours + 1-week process standardization training | ||
Product Description
Smart inline quality safeguarding system for offset printing presses (Heidelberg, KBA, Komori, Roland). Features pre-printing PDF original verification, patented variable-frequency air-blowing flattening for paper over 350g, dual 4K/8K color cameras with water-cooled illumination, AI continuous waste auto-stop, X-Rite-grade color measurement, and full MES integration at up to 15,000 sheets/hour.
Key Features
- Pre-Printing PDF Verification: Acts as a rigorous pre-auditor automatically verifying printed proof against original PDF, detecting layout errors, typography mistakes, and plate flaws before mass printing
- Patented Variable-Frequency Air Flattening: Solves fluttering and flattening for heavy-weight carton boards (> 350g) without overheating or drying out dampening water
- Dual 8K Color Cameras + Water-Cooled Lighting: Long-life, ultra-stable imaging that eliminates light column reflection problems on cigarette and holographic foil cartons
- MateLize Light Column Shielding: Specialized optical technology to inspect laser paper, holographic foil, and gold/silver metallized cardboard without false alarms
- Continuous Waste Protection: AI intelligently flags successive print defects and automatically triggers press feeder stoppage to prevent catastrophic paper waste
- Pharmaceutical Regulatory Code Inspection: Specialized algorithms detect missing, unprinted, or misplaced drug tracking codes with dedicated alert channels
- X-Rite Calibrated Color Module: Real-time multi-zone color consistency measurement matching lab-grade X-Rite instruments
- Quality Piloting Reports: Automated red/yellow batch pallet tickets detail waste sheets for seamless handoff to die-cutting, folder-gluers, or offline sorting
- Universal Offset Press Adaptation: Turnkey retrofitting and mapping across hundreds of Heidelberg, KBA, Komori, and Roland press lines
