Shark-630 High-Speed Modular Surface Quality Inspection Machine
Model: FS-SHARK-630
Product Details
Place of OriginChina
Brand NameFOCUSIGHT
CertificationISO9001/CE
Model NumberFS-SHARK-630
Maximum Inspection Speed400 m/min
Maximum Inspection Size630mm × 300mm (Length × Width)
Minimum Inspection Size70mm × 90mm (Length × Width)
Paper Weight / Thickness150 ～ 450 g/m²
Minimum Spot Detection Size0.2 mm² (Contrast ratio > 20DN)
Minimum Line Detection SizeWidth ≥ 0.15mm, Length ≥ 5mm
Color Difference Detection△E ≥ 3
Overprint Detection Precision±0.15 mm
Floor Space (Glued Box Connecting)530cm × 250cm × 150cm (L × W × H)
Floor Space (Fish Scale Offline Mode)680cm × 250cm × 150cm (L × W × H)
Floor Space (Reflow Line Model)1250cm × 350cm × 150cm (L × W × H)
Total Weight4,000 kg (4.0 Tons)
Gas / Air Requirements0.8 Mpa, 0.8 m³/min
Payment & Shipping Terms
Minimum Order Quantity1 Unit
PriceNegotiable
Packaging DetailsPlywood Case
Delivery Time60 Days
Payment TermsL / C , T / T
Supply Ability20 Per Month
Detail Information
| Spec | Value | Spec | Value |
|---|---|---|---|
| Place of Origin | China | Brand Name | FOCUSIGHT |
| Certification | ISO9001/CE | Model Number | FS-SHARK-630 |
| Maximum Inspection Speed | 400 m/min | Maximum Inspection Size | 630mm × 300mm (Length × Width) |
| Minimum Inspection Size | 70mm × 90mm (Length × Width) | Paper Weight / Thickness | 150 ～ 450 g/m² |
| Minimum Spot Detection Size | 0.2 mm² (Contrast ratio > 20DN) | Minimum Line Detection Size | Width ≥ 0.15mm, Length ≥ 5mm |
| Color Difference Detection | △E ≥ 3 | Overprint Detection Precision | ±0.15 mm |
| Floor Space (Glued Box Connecting) | 530cm × 250cm × 150cm (L × W × H) | Floor Space (Fish Scale Offline Mode) | 680cm × 250cm × 150cm (L × W × H) |
| Floor Space (Reflow Line Model) | 1250cm × 350cm × 150cm (L × W × H) | Total Weight | 4,000 kg (4.0 Tons) |
| Gas / Air Requirements | 0.8 Mpa, 0.8 m³/min | ||
Product Description
Modular high-speed surface quality inspection machine engineered for die-cutting small-sheet cartons, wine bags, cosmetic boxes, and daily chemical tags. Supports single-operator operation, modular switching between offline quality inspection and inline folder-gluer modes, negative pitch function, and speeds up to 400 m/min.
Key Features
- Single-Operator Operation: Automated loading, transferring, kicking off, and material collection with one-key product switching
- Vertical Palletizing & Return Line: Good and bad product return line allows effortless single-person operation
- Ultra-High Speed (400 m/min): Matches the full speed of folder-gluers to maximize factory throughput
- Negative Pitch Function: Increases production capacity by 30% compared with conventional inspection machines
- Layered Process Detection Algorithms: Independent and accurate detection of color, variable data/barcodes, ink spots, registration, and hot stamping
- Patented Light Column Shielding: Program-controlled lighting responds to laser paper, gold/silver cardboard, and reflective materials, dramatically reducing false alarms
- Dust False-Alarm Reduction: Optional integrated machine enclosure effectively reduces dust false alarms
- Wizard-Style One-Click Modeling: Complete PDF/AI template modeling in under 3 minutes for easy new product setup

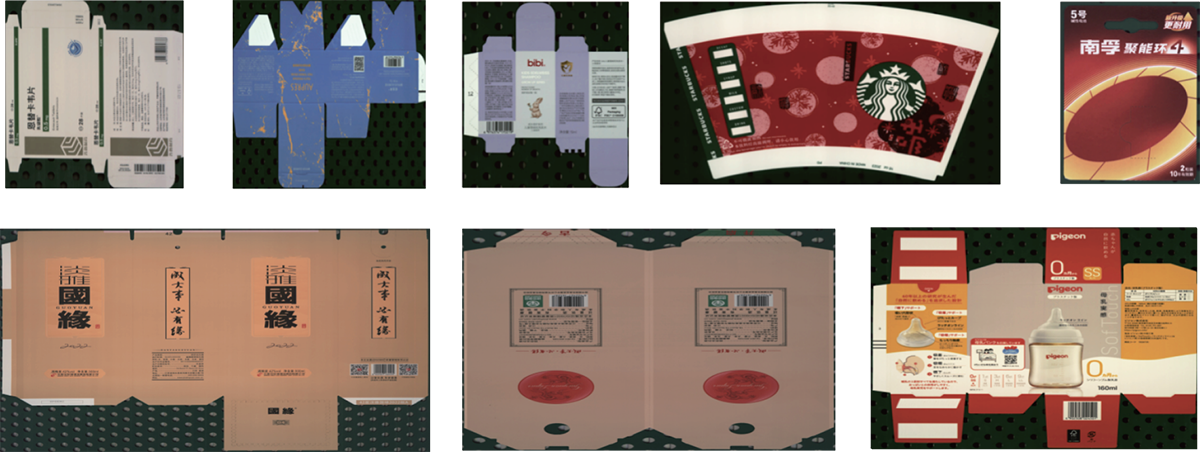

- Application Industry: Wine bags, high-end cosmetic boxes, daily chemical tags, fan-shaped boxes, and folding cartons
