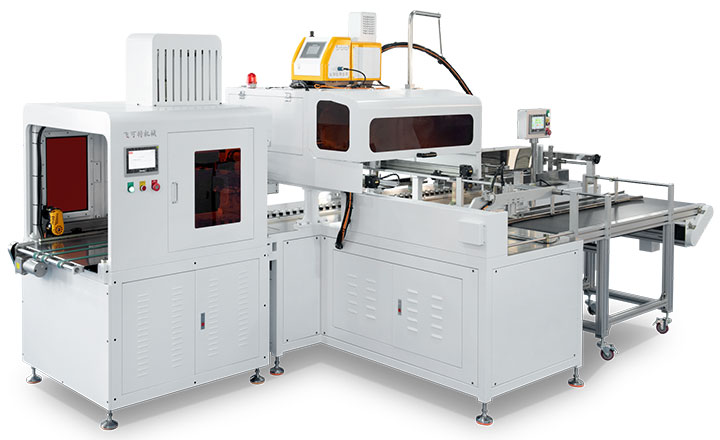

FKT-9045A Automatic Luxury Rigid Box Assembly Machine
Model: FKT-9045A
Product Details
Payment & Shipping Terms
Detail Information
| Spec | Value | Spec | Value |
|---|---|---|---|
| Model | FKT-9045A | Power Supply | AC220V/50Hz |
| Total Power | 8kW | Air supply | 0.8MPa, 300-500L/min |
| Speed | 15-23pcs/min | Positioning accuracy | ±0.5mm |
| Weight | 1300kg | Machine Dimension(L*W*H) | 4900mm*2140mm*1950mm |
| Glue gun qty | 1pcs | Glue type | Hot melt glue, medium speed drying |
| Glue tank volume | 4L | Glue melt temperature | 170-190°C |
| Book Type: Hard cover case Max | 900mm*420mm | Book Type: Hard cover case Min | 110mm*55mm |
| Book Type: Inner box Max | 500mm*400mm*120mm | Book Type: Inner box Min | 55 mm *55 mm*30mm |
| Frame Box: Outer box Max | 450mm*370mm*70mm | Frame Box: Outer box Min | 80mm*80mm*10mm |
| Frame Box: Inner box Max | 500mm*400mm*120mm | Frame Box: Inner box Min | 55 mm *55 mm*30mm |
Product Description
FKT-9045A Automatic Luxury Rigid Box Assembly Machine adopts PLC and photoelectric detection technology, which can automatically complete the work of box feeding, gluing, box feeding, edge pressing, and forming without manual intervention. It is suitable for hard boxes with frames, book-shaped boxes, etc., and has a wide range of box making. This machine is a multi-function box assembly machine, which is elaborately organized and developed by our company according to the diversified trend of high-quality box products and the requirements of customers. Applied for box assembly (bottom or without bottom): box in box assembly, frame in box assembly. The machine adopts PLC control, servo drive, photoelectric detection and other latest technology, automatically complete many processes such as: case feeding, gluing, box feeding, assembly and positioning, side pressing and molding.
Key Features
- PLC and photoelectric detection technology
- Automatic box feeding, gluing, edge pressing, and forming
- Suitable for hard boxes with frames, book-shaped boxes
- Multi-function box assembly (box in box, frame in box)
- Solves problems of numerous and miscellaneous orders
- Servo drive for precise control
