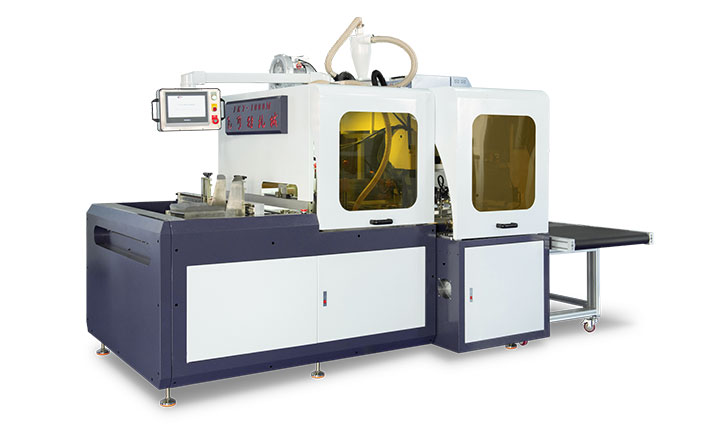

FKT-1000M Rigid Box Magnet (Iron Sheets) Pasting Machine
Model: FKT-1000M
Product Details
Payment & Shipping Terms
Detail Information
| Spec | Value | Spec | Value |
|---|---|---|---|
| Model | FKT-1000M | Power supply | AC220V, 50Hz, single phase |
| Total power | 6.5kW | Air supply | 0.8MPa, 300-500L/min |
| Glue tank volume | 4L | Glue jet volume | 1-200mg |
| Positioning precision | ±0.05mm | Production speed | 30-35pcs/min |
| Board size(L*W) | 100x80mm-1000x600mm | Board stacking height Max. | 300mm |
| Magnet&Metal sheet diameter | 8-20mm | Distance between two nearby magnets/metal sheets | 95-460mm |
| Machine net weight | 1200kg | Machine dimension | 3200mmx2400mmx1700mm |
Product Description
FKT-1000M Rigid Box Magnet (Iron Sheets) Pasting Machine can produce at a speed of 30-35pcs/min. It has the functions of automatic paperboard feeding, gluing, and magnet insertion. The paperboard is fed by rollers to ensure smooth feeding. This machine is an automatic magnet & metal sheet pasting machine, combining with our years of rich experience in researching and developing magnet pasting machinery. Applied for drilling hole and magnet&metal sheet pasting on the board and case, one operator can handle the whole machine, which is high efficient and labor saving. The machine adopts PLC control, servo drive, photoelectric detection and other latest technology, automatically complete many process such as board&case feeding, drilling hole, waste cleaning, gluing, magnet&metal sheeting pasting.
Key Features
- Automatic paperboard feeding, gluing, and magnet insertion
- High efficient and labor saving (one operator required)
- PLC control, servo drive, and photoelectric detection
- Automated drilling, waste cleaning, and pasting processes
- Roller feeding system for smooth paperboard transport
